Interactive Record Producer with REST

How to call a third-party REST API using record producer and a widget. This article also shows how to embed a widget into a record producer or catalog item.

Note you can develop an integration like this in different ways, but this is my method that I prefer.

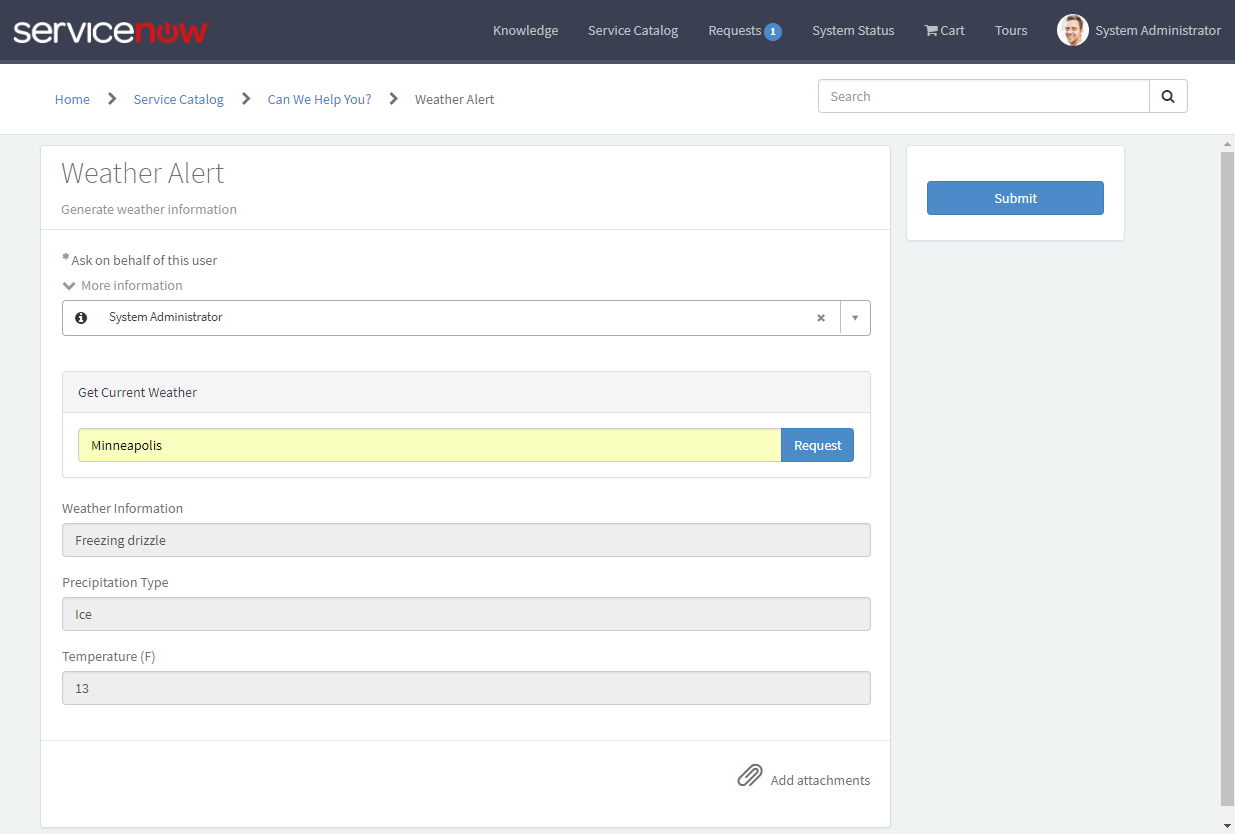

Weather Alert for Minneapolis

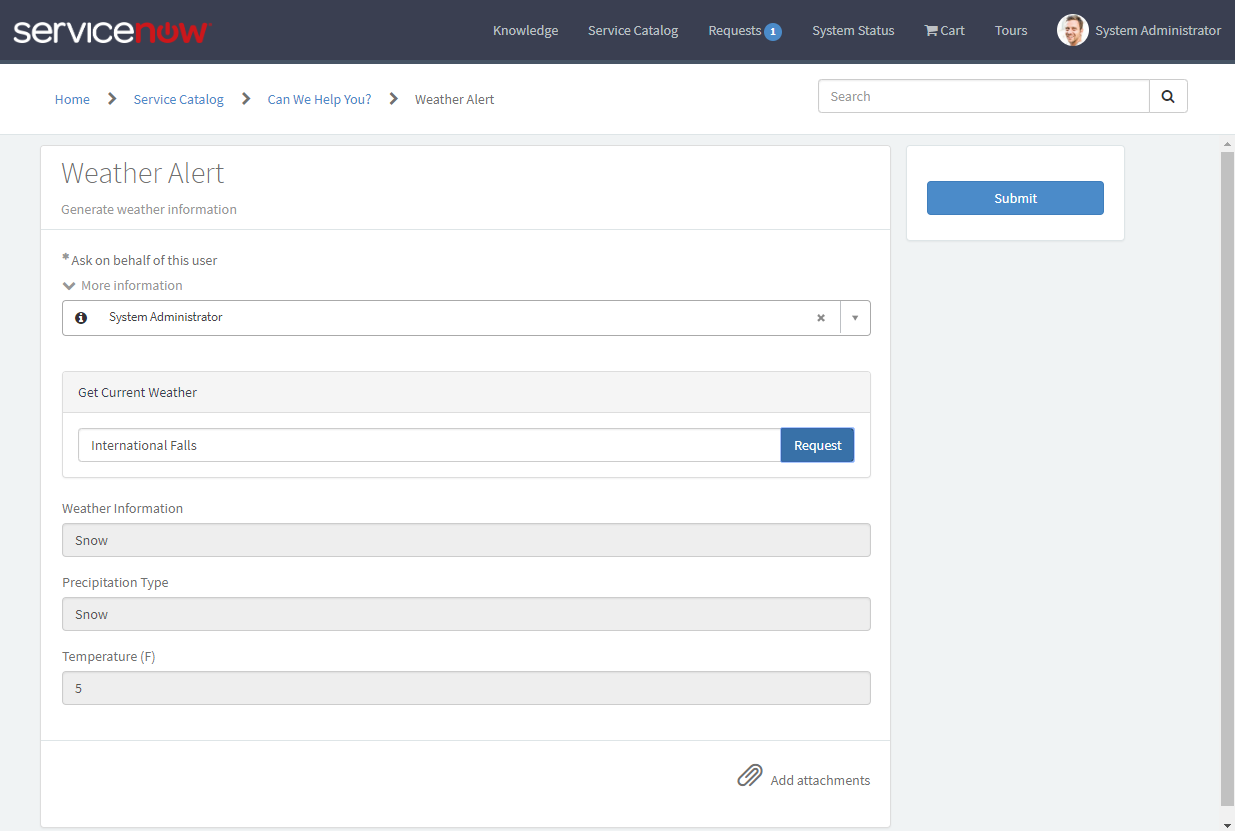

Weather Alert for International Falls


API Account

For this demo, I created an account at


To get the current weather from the Accuweather api, you first need to call the Location HTTP method to get a location key. After you get the Location key, you can use that to get the current weather.

Rest Message

Name: Accuweather
Application: Global

Authentication type: No authentication (We use an API Key)

HTTP Method (Location)

Name: Location
HTTP Method: GET
Authentication Type: Inherit from Parent
HTTP Query Parameters
Name | Value
apikey | <yourkey>
q | $
Variable Substitutions
q | Fort Ripley

HTTP Method (Current Weather)

Name: Current Weather
HTTP Method: GET
Endpoint:$[object Object]
Authentication Type: Inherit from Parent
HTTP Query Parameters
Name | Value
apikey | <yourkey>
Variable Substitutions
location | 2247543

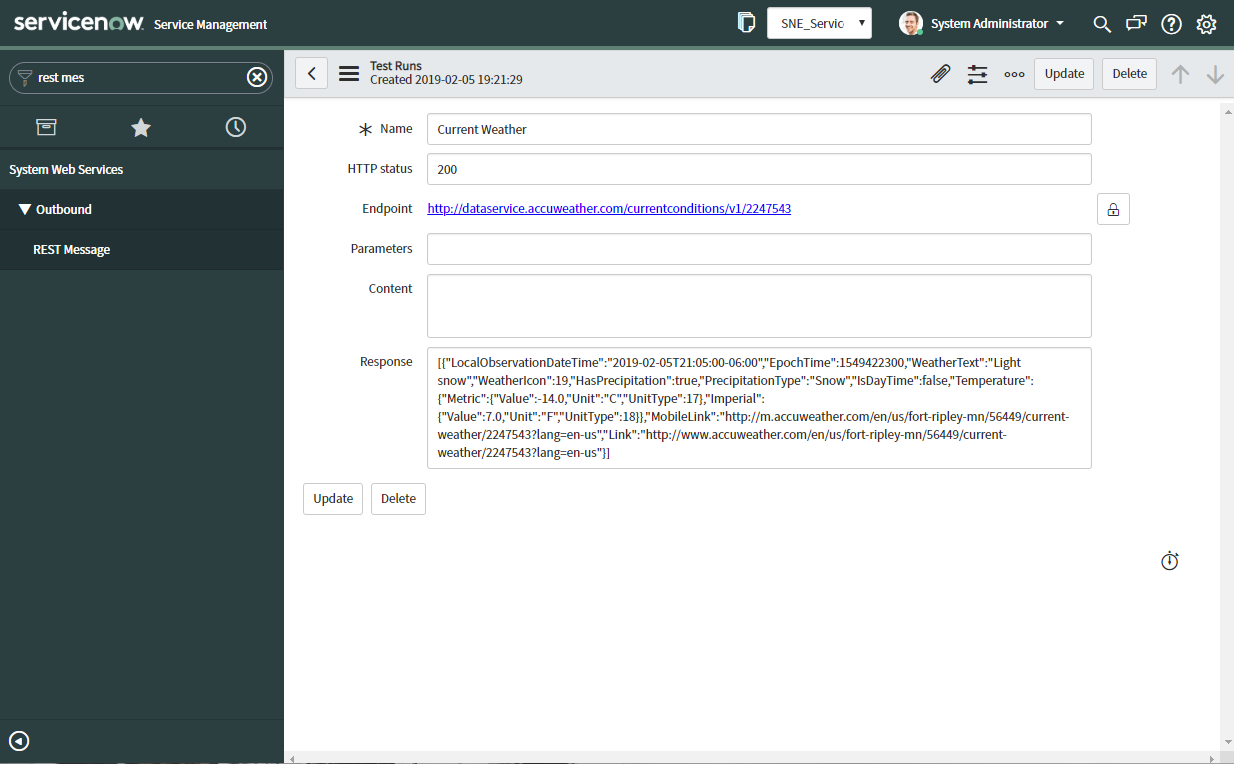

Test Run for Current Weather HTTP Method



Weather Alert


<div class="panel panel-default">
  <div class="panel-heading">
    ${Get Current Weather}
  <div class="panel-body">
    <div class="input-group">
      <input type="text" class="form-control" id="location" placeholder="$" ng-model="">
      <span class="input-group-btn">
        <button type="submit" class="btn btn-primary" ng-click="c.getWeather();">$</button>

Server Script

Two REST calls are done here, one to the location HTTP method to get the location key, and the other to get the current weather.

(function() {
	if (input) {
		try {
			//Get Location
			var rloc = new sn_ws.RESTMessageV2('Accuweather', 'Location');
			rloc.setStringParameterNoEscape('q', input.location);
			var locResponse = rloc.execute();
			var locResponseBody = locResponse.getBody();
			var locHttpStatus = locResponse.getStatusCode();
			var locParser = new JSONParser();
			var locJsonObj = locParser.parse(locResponseBody);
			var locKey = locJsonObj[0].Key; = locJsonObj[0].LocalizedName;
			//Get Current Weather
			var rCW = new sn_ws.RESTMessageV2('Accuweather', 'Current Weather');
			rCW.setStringParameterNoEscape('location', locKey);
			var cwResponse = rCW.execute();
			var cwResponseBody = cwResponse.getBody();
			var cwHttpStatus = cwResponse.getStatusCode();
			var cwParser = new JSONParser();
			var cwJsonObj = cwParser.parse(cwResponseBody);
			data.WeatherText = cwJsonObj[0].WeatherText;
			data.PrecipitationType = cwJsonObj[0].PrecipitationType;
			data.Temperature = cwJsonObj[0].Temperature.Imperial.Value;
		catch(ex) {
			var message = ex.message;

Client Controller

Using $, the fields on the form are set after the button is clicked.

function($scope) {
	var c = this;
	c.getWeather = function() {
		c.server.update().then(function() {
			var g_form = $;

Record Producer

NAME: Weather Alert
TABLE NAME: incident


current.short_description = 'Weather Alert for: ';
var weatherData = 'City: ''\n';
weatherData += 'Weather Information: '+producer.WeatherText+'\n';
weatherData += 'Precipitation Type: '+producer.PrecipitationType+'\n';
weatherData += 'Temperature (F): '+producer.Temperature+'\n';
current.comments = weatherData;


The Weather Alert widget is embedded in the catalog item as a macro.

Question | Name | Type | Widget | Order
Ask on behalf of this user | caller_id | Reference |  | 100
Weather Alert Widget | weather_alert_widget | Macro | Weather Alert | 200
Weather Information | WeatherText | Single Line Text |  | 300
Precipitation Type | PrecipitationType | Single Line Text |  | 400
Temperature (F) | Temperature | Single Line Text |  | 500
City | city | Single Line Text |  | 600


Name | UI policy | Read only | Mandatory | Visible
PrecipitationType | Read Only and Mandatory | True | Leave alone | Leave alone
city | Read Only and Mandatory | Leave alone | Leave alone | False
Temperature | Read Only and Mandatory | True | Leave alone | Leave alone
WeatherText | Read Only and Mandatory | True | Leave alone | Leave alone
